HEAVY DUTY MODULAR HORSE STALLS
One Piece Construction - No Posts Necessary!
Available in Painted Steel , Galvanized and MESH!

* Five Section Miminum Order Required for Free Shipping for Products on this Page.

Toll Free: 1-800-335-1880 Office Hours Monday-Friday 7:00 am - 5:00 pm EST.

Painted Steel Modular Prefabricated Horse Stalls

One Piece Construction - No Posts Necessary!


Designed so that the horse stall fronts can be reversed to allow the sliding door position to be left or right. All latches are spring loaded and without protrusions to be safe and horse proof. Heavy brackets (2, 3, or 4 way) lock fronts and sides together and are provided at no extra charge. Stall height is 7½ ft. The stall door is equipped with an anti-liftoff bracket and stay brackets. Each horse stall front has a swing-out feed door and a swing-out on the stall door which acts as a gossip door.
Door rollers are designed for smooth and quiet operation. Fully welded construction using 2" structural steel for durability with 3/4" square tube grills on 4" centers make this stall portable and strong. Can be used as both a portable horse stall or set permanently!



Available Colors:
Hunter Green
Burgundy
Black


No fastening of boards is necessary. Simply cut boards to length and drop into channels. Wood is not provided, but 2 x 6 tongue and groove is recommended for sturdiness and appearance. Mininum order of 5 modular sections for free freight.

Insert boards vertically or horizontally, your choice! Fronts are equipped with two swing out doors. One is on the sliding door and the other is on the stationary part of the stall front for feeding.

• All of our combination feeders can be easily installed on the swing out feed door.

• Unique latches eliminate any sharp protrusions and operate with one hand.

• Aesthetic, tough, 2" square tube (16 gauge) frame (equivalent to 2½” round tubing) with 3/4" square tube grill bars (equivalent to 1" round tubing) on 4” centers (3¼” open space).

Click Here for Assembly Instructions

Click Here for Modular Stall Building Guide

 Need Help Deciding Which Type of Stall Will Work Best For You? Visit Our Stall Kit vs Modular Stall Comparison Page



 ST10GF 10' Stall Front with Sliding Door and 2 Swing outs. $755.00

ST10GF Hunter Green: or call 1-800-335-1880

ST10GF Burgundy: or call 1-800-335-1880

ST10GF Black: or call 1-800-335-1880

5 minimum order for free freight to a business address (example 1 front and 4 walls)



 ST10GS 10' Horse Stall Grilled Side Wall. $560.00

ST10GS Hunter Green: or call 1-800-335-1880

ST10GS Burgundy: or call 1-800-335-1880

ST10GS Black: or call 1-800-335-1880

5 minimum order for free freight to a business address



 ST10SS 10' Horse Stall Solid Side Wall. $410.00

ST10SS Hunter Green: or call 1-800-335-1880

ST10SS Burgundy: or call 1-800-335-1880

ST10SS Black: or call 1-800-335-1880

5 minimum order for free freight to a business address



 ST12GF 12' Stall Front with Sliding Door and 2 Swing outs. $810.00

ST12GF Hunter Green: or call 1-800-335-1880

ST12GF Burgundy: or call 1-800-335-1880

ST12GF Black: or call 1-800-335-1880

5 minimum order for free freight to a business address



 ST12GS 12' Horse Stall Grilled Side Wall. $590.00

ST12GS Hunter Green: or call 1-800-335-1880

ST12GS Burgundy: or call 1-800-335-1880

ST12GS Black: or call 1-800-335-1880

5 minimum order for free freight to a business address



 ST12SS 12' Horse Stall Solid Side Wall. $440.00

ST12SS Hunter Green: or call 1-800-335-1880

ST12SS Burgundy: or call 1-800-335-1880

ST12SS Black: or call 1-800-335-1880

5 minimum order for free freight to a business address



Toll Free: 1-800-335-1880 Office Hours Monday-Friday 7:00 am - 5:00 pm EST.

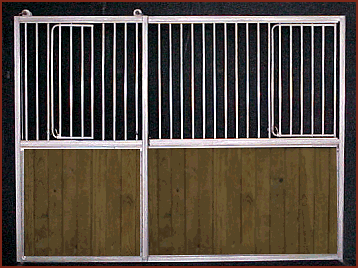

Galvanized Steel Modular Prefabricated Horse Stalls

NO WELD Construction - No Posts Necessary!


Designed so that the horse stall fronts can be reversed to allow the sliding door position to be left or right. All latches are spring loaded and without protrusions to be safe and horse proof. Heavy brackets (2, 3, or 4 way) lock fronts and sides together and are provided at no extra charge. Stall height is 7½ ft. The stall door is equipped with an anti-liftoff bracket and stay brackets. Each stall front has a swing-out feed door and a swing-out on the stall door which acts as a gossip door.
Door rollers are designed for smooth and quiet operation. NO WELD construction using 2" structural steel for durability with 3/4" square tube grills on 4" centers make this stall portable and strong. Can be used as both a portable horse stall or set permanently!

No fastening of boards is necessary. Simply cut boards to length and drop into channels. Wood is not provided, but 2 x 6 tongue and groove is recommended for sturdiness and appearance. Mininum order of 5 modular sections for free freight.

Insert boards vertically or horizontally, your choice! Fronts are equipped with two swing out doors. One is on the sliding door and the other is on the stationary part of the stall front for feeding.

• All of our combination feeders can be easily installed on the swing out feed door.

• Unique latches eliminate any sharp protrusions and operate with one hand.

• Aesthetic, tough, 2" square tube (16 gauge) frame (equivalent to 2½” round tubing) with 3/4" square tube grill bars (equivalent to 1" round tubing) on 4” centers (3¼” open space).


Click Here for Assembly Instructions

Click Here for Modular Stall Building Guide



 GA10GF 10' Horse Stall Front with Sliding Door and 2 Swing outs. $1020.00 or call 1-800-335-1880

5 minimum order for free freight to a business address (example 2 fronts and 3 walls)



 GA10GS 10' Horse Stall Grilled Side Wall. $735.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



 GA10SS 10' Horse Stall Solid Side Wall. $490.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



 GA12GF 12' Horse Stall Front with Sliding Door and 2 Swing outs. $1070.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



 GA12GS 12' Horse Stall Grilled Side Wall. $790.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



 GA12SS 12' Horse Stall Solid Side Wall. $550.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



Toll Free: 1-800-335-1880 Office Hours Monday-Friday 7:00 am - 5:00 pm EST.

Galvanized Heavy-Duty Mesh Modular Prefabricated Horse Stalls

NO WELD Construction - No Posts Necessary!


Includes the great features if our other modular horse stalls with the growing popularity of mesh on 2" square centers. Framed with 2" galvanized square tubes, with no welds, a very solid, safe and maintenance free stall can be constructed. Stall height is 7 1/2 ft.

A feed opening or any of our swing-out feeders can be installed by special order.
Note: The all mesh door can be substituted on our other modular stall fronts by special order.


No fastening of boards is necessary. Simply cut boards to length and drop into channels. Wood is not provided, but 2 x 6 tongue and groove is recommended for sturdiness and appearance. Mininum order of 5 for free freight.

Connectors of your choice included

Click Here for Assembly Instructions

Click Here for Modular Stall Building Guide



 MW10MF 10' HORSE STALL FRONT WITH ALL MESH SLIDING DOOR (shown) $1250.00 or call 1-800-335-1880

MW12MF 12' HORSE STALL FRONT WITH ALL MESH SLIDING DOOR (not shown) $1290.00 or call 1-800-335-1880

5 minimum order for free freight to a business address

Picture Not Available

 MW10MS 10' MESH HORSE STALL GRILL SIDE WALL $810.00 or call 1-800-335-1880

MW12MS 12' MESH HORSE STALL GRILL SIDE WALL $880.00 or call 1-800-335-1880

5 minimum order for free freight to a business address

Picture Not Available

 MW10SS 10' SOLID HORSE STALL SIDE WALL $490.00 or call 1-800-335-1880

MW12SS 12' SOLID HORSE STALL SIDE WALL $550.00 or call 1-800-335-1880

5 minimum order for free freight to a business address



Complete Horse Stall Ventilation and Visibility

with the ALL MESH MODULAR PREFABRICATED HORSE STALLS. Our no-weld construction ensures excellent durability without corrosion!

The stall walls arrive ready to stand up and pin together. All sliding door hardware is included. On units requiring wood, the lumber is not included. Units can be installed free standing or attached to your barn walls using starter brackets. Stall height is 7 1/2 ft. NO POSTS REQUIRED!



 MM10MF 10' ALL MESH HORSE STALL FRONT WITH ALL MESH SLIDING DOOR (not shown) $1350.00 or call 1-800-335-1880

MM12MF 12' ALL MESH HORSESTALL FRONT WITH ALL MESH SLIDING DOOR (shown) $1400.00 or call 1-800-335-1880

5 minimum order for free freight to a business address

 Not Pictured

 MM10MS 10' ALL MESH HORSE STALL GRILL SIDE WALL $1210.00 or call 1-800-335-1880

MM12MS 12' ALL MESH HORSE STALL GRILL SIDE WALL $1260.00 or call 1-800-335-1880

5 minimum order for free freight to a business address


Larger stall sizes can be accomplished in 2' increments. Mininum order of 5 for free freight.

Please call 1-800-335-1880 for custom sizes.

.
